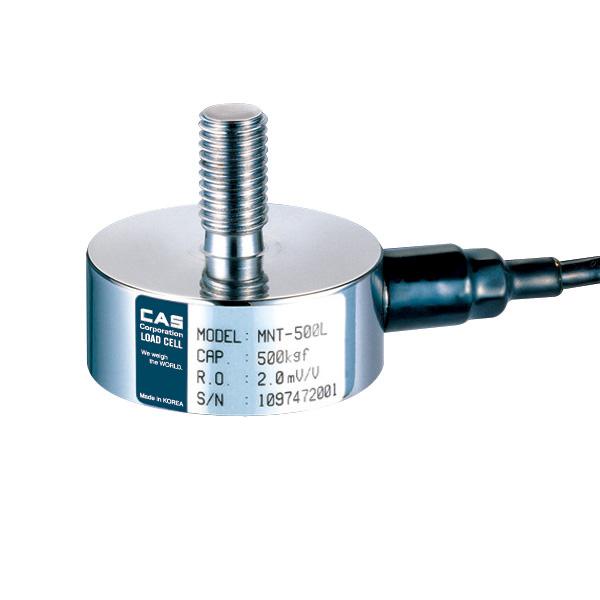

MNT miniature load cell, 50kgf - 500kgf

⊙FEATURES
Miniature dimension
Stainless steel construction
Tension application
Application for limited space
Protection class IP67

⊙Material
Stainless Steel

⊙Cable
Braided shield 4-wire round cable
with Urethane-Jacket
Ordering Information
MNT - XXXL
          ━┳
     Capacity in kg

Model	cable length
MNT-50,100,200,500L	3m
MNT-1T	5m
MNT-2T	10m

Max. capacity	kgf	50, 100, 200, 500, 1tf, 2tf
Rated output Zoro balance	mV/ V mV/ V	2.0 ± 0.005 0 ± 0.06
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.15 0.05 0.03 0.05 0.10
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 420 ± 30 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +80
