CT ACCESSORY ACCESSORY FEATURES
- Bearing included structure
- CAS specification
- Order Made accessories for 20K
MANUAL
- Install the Rod End on the upper and bottom side of the Load Cell
- Do not insert the Rod End until the end
- The Rod End should be in a perpendicular with the force
direction of the Load Cell
- CAS original Rod End is recomended for the application
|
 |
|

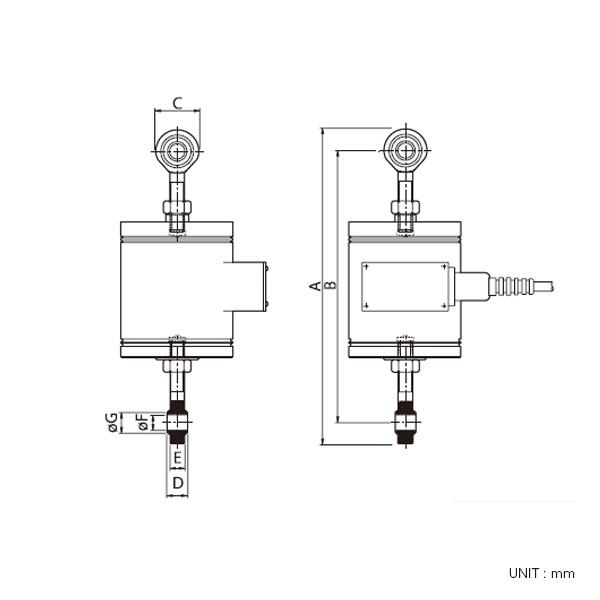

| Capa | A | B | C | D | E | øF | øG | | 20 | 249.0 ~ 254.0 | 215.0 ~ 220.0 | 34.0 | 16.0 | 12.0 | 12.0 | 15.4 | | 50 | | 100 | | 200 | 255.0 ~ 260.0 | 221.0 ~ 226.0 | | 300 | | 500 | | 1K | | 2K | 525.0 ~ 530.0 | 423.0 ~ 428.0 | 102.0 | 28.0 | 27.0 | 22.0 | 25.8 | | 3K | | 5K | | 10K | 680.0 ~ 685.0 | 545.0 ~550.0 | 135.0 | 40.0 | 38.0 | 39.0 | 45.0 | | 20K | Demand Accessory | |
