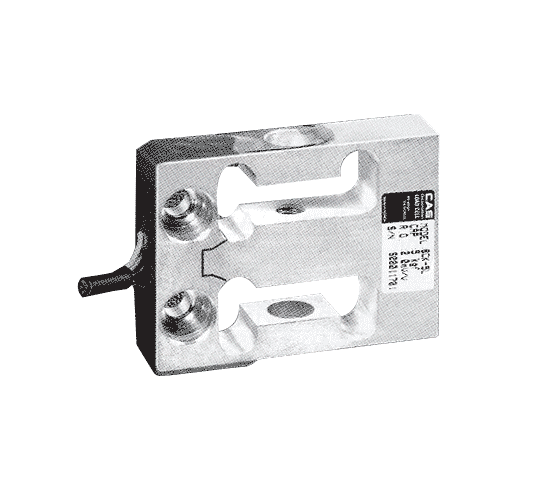

BCK force sensor, 1kgf - 50kgf

⊙FEATURES
High bridge impedance
Overload protection
Small size and light weight
Simplified tension and compression loading

Max. capacity	1, 2, 5, 10, 25, 50tf
Rated output Zoro balance	2.0 ± 0.2mV/V 0 ± 0.4mV/V
Linearity Hysteresis Repeatability Creep for 20min. Temperature effect on            Zero Value            Output value	0.05%R.O. 0.05%R.O. 0.01%R.O. 0.1%R.O. 0.05%R.O./10℃ 0.03%R.O./10℃
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	10V 15V 1,160 ± 10Ω 1,000 ± 10Ω ＞2,000MΩ
Compensated temperature range Operating temperature range	-10 to +40℃ -20 to +80℃
