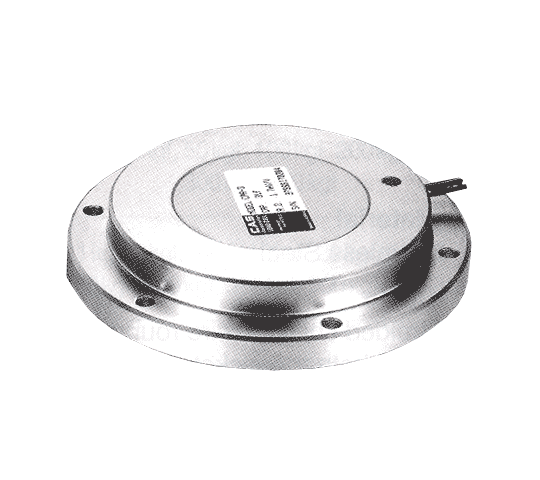

CPA slim profile load cell, 1kgf - 2tf

⊙FEATURES
Low-profile
Integrated loading base
Low-deck high capacity scale applications

Max. capacity	500kgf, 1, 1.5, 2, 3, 5tf
Rated output Zoro balance	1.7 ± 0.17mV/V 0 ± 0.016mV/V
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	0.14%R.O. 0.03%R.O. 0.03%R.O. 0.03%R.O./10℃ 0.05%R.O./10℃
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	10V 15V 760 ± 7Ω 700 ± 7Ω ＞2,000MΩ
Compensated temperature range Operating temperature range	-10 to +40℃ -40 to +70℃
