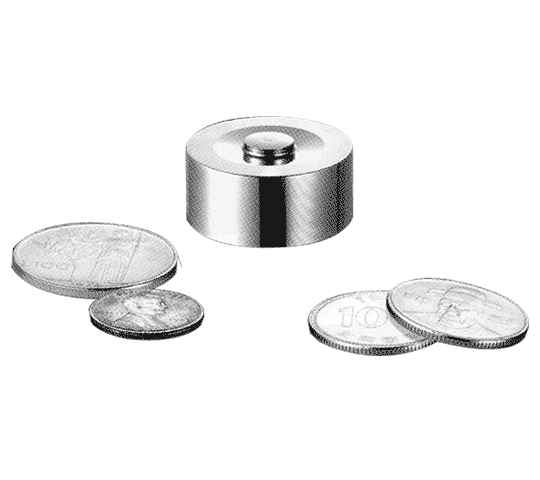

NMNC sub-miniature load cell, 50kgf - 3tf

⊙FEATURES
Sub-Miniature dimension
Compression application
Protection class IP65

⊙Material
Stainless steel

⊙Cable
Braided shield 4-wire round cable

⊙Ordering Information

Model	Capacity
NMNC-50, 100, 200, 500L	kgf
NMNC-1, 2, 3T	tf

Max. capacity		kgf	50, 100, 200, 500, 1tf, 2tf, 3tf
Rated output	Standard	mV/ V	1.0
	Option		1.0 ± 10%R.O.
Zero balance		mV/ V	0 ± 10%R.O.
Combined error Repeatability Temperature effect on            Zero Value            Output value		% % %/ 10℃ %/ 10℃	＜0.5 ＜0.5 0.028 0.015
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation		V V Ω Ω MΩ	10 15 400 ± 10 350 ± 5 ＞2,000
Compensated temperature range Operating temperature range		℃ ℃	-10 to +40 -30 to +80
