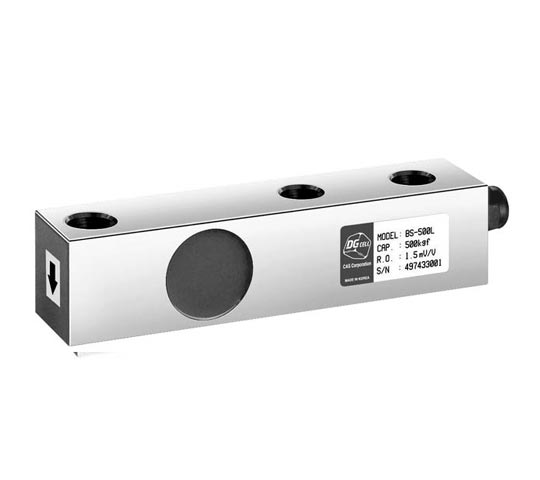

BS shear beam load cell, 250kgf - 10tf

⊙FEATURES
Low price high accuracy
Protection class IP65

⊙Material
Nickel plated steel

⊙Mounting

Capacity	Hexagon head-Bolt	Tightening torque
250kgf - 2tf	M14 x 2.0(10.9)	166Nm
5tf	M18 x 1.5(10.9)	350Nm
10tf	M24 x 2.0(10.9)	860Nm

⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket

Max. capacity	kgf	250, 500	1,2,3,5,10(tf)
Rated output Zoro balance	mV/ V mV/ V	1.5 ± 0.0037 2.0 ± 0.005	0 ± 0.015 0 ± 0.02
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.03 0.01 0.03 0.028 0.015
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 400 ± 20 350 ± 5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +80
